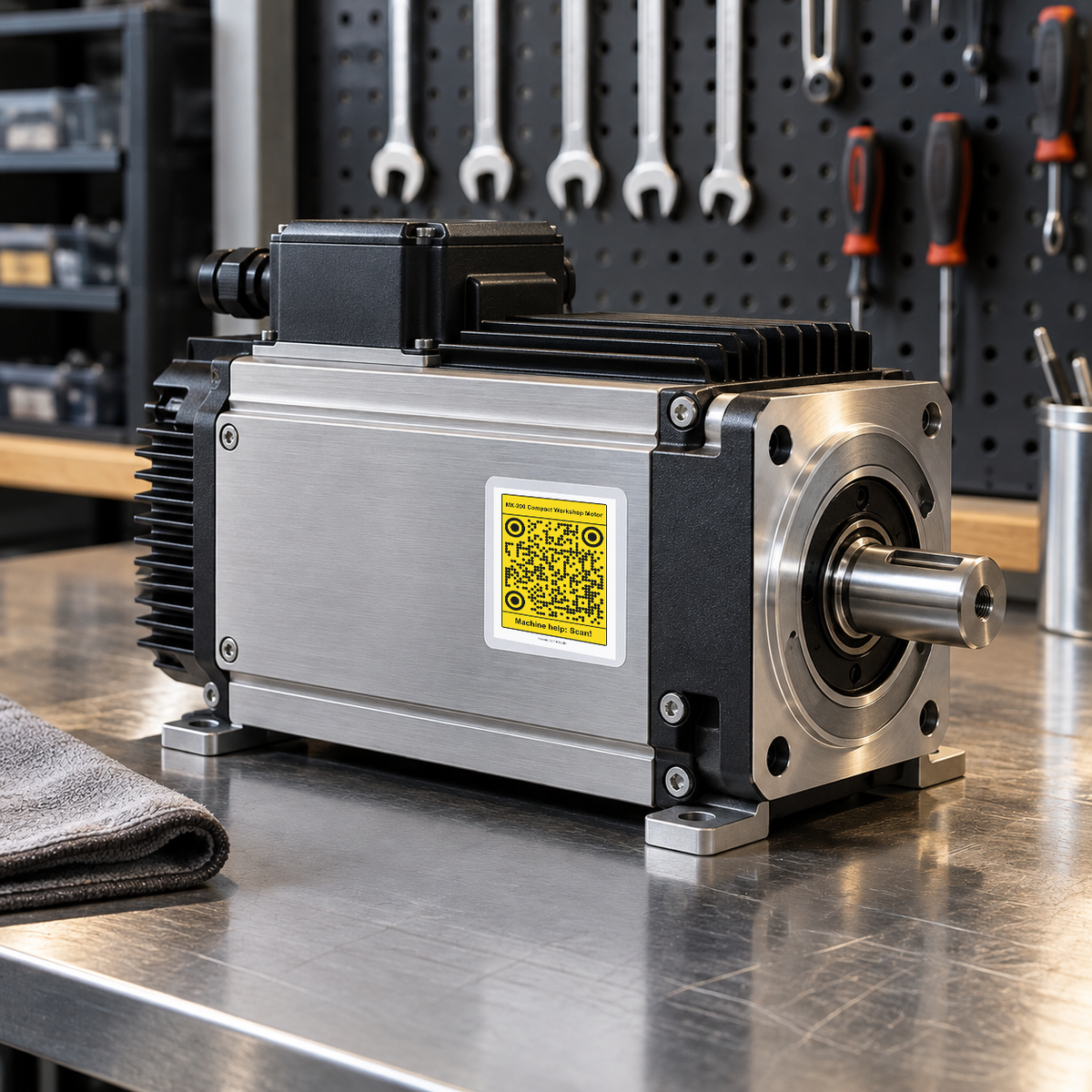

MX-200 Compact Workshop Motor Unit

The MX-200 is a compact 1.5 kW drive unit for workshop benches and light production lines. It's part of the AskDolphin demo store: the QR sticker on the machine opens a chat about this exact model, so operators get specs, fixes and maintenance steps without hunting for the manual.

Demo product for testing only; not for real sale.

Specifications

• Power: 1.5 kW
• Speed: 500–3,000 rpm, variable
• Supply: 230 V 50 Hz (UK/EU) or 110 V 60 Hz (US), single phase
• Weight: 18 kg
• Dimensions: 32 × 24 × 26 cm
• Noise: under 70 dB at 1 m
• Protection: IP54 (dust and splash protected)
• Operating temperature: 0–40°C

Error codes

• E01 (Overheat): switch off and let it cool for 20 minutes. Check the cooling fins aren't blocked.
• E02 (Overload): reduce the load or speed, then restart. If it repeats, check the drive belt tension.
• E03 (Supply fault): check the voltage matches your variant (230 V or 110 V) and the plug fuse (13 A for UK).
• Any other code: note it and ask in the chat. A technician will follow up.

Maintenance

• Weekly: blow dust off the cooling fins with dry compressed air
• Every 500 hours: check belt tension and mounting bolts
• Every 2,000 hours: replace the bearings (part MX-B2)
• Always isolate the power before opening the side panel

Spare parts

Drive belt (MX-DB1), bearing set (MX-B2), cooling fan (MX-F1) and side panel (MX-SP1) are available. Ask in the chat for prices and delivery.

Warranty & manual

• 2-year warranty on parts and labour, from the delivery date
• The user manual PDF is available on request in the chat
• In the box: MX-200 unit, mounting kit, power cable and quick-start card

Shipping & Returns

Processing time: 2 business days. Shipped by pallet courier.

• UK: 2–4 business days
• EU: 4–7 business days
• International: 10–15 business days

Returns: 30 days from delivery, unused and in original packaging. Report transport damage within 7 days.
